Lift kits

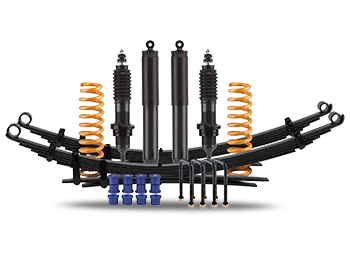

Our lift kits come in a total package including shock absorbers, coil springs, leaf springs, bush kits, strut caps, shackles and pins.

Types of Suspension Lift Kits

While each type of 4x4 vehicle requires a different 4x4 lift kit setup, there are two main types: leaf spring and coil spring.

Leaf Spring Kits

Typically, leaf spring suspensions are found in many models of 4x4. The simplest way to add height is to install new, bigger springs. Lifting blocks can also lift the rear of a 4WD but are not usually applicable for the front of vehicles because it typically causes issues with braking - this is not something you want with a fully loaded family adventure!

Adding-a-Leaf Option

If you would like to add a suspension lift kit to the front and back of the 4x4, then the add-a-leaf method is one option. An extra leaf is inserted into the vehicle's leaf pack. But beware, the added spring rate can result in a rougher ride than the stock factory set.

New Leaf Spring Kits

The add-a-leaf option relies on old springs, but the alternative is simply replacing the springs with a new leaf spring pack. With a new leaf spring pack, the springs will not be fatigued, and the amount of lift can be customised to fit the vehicle and the desired amount of lift. Of course, this option does also depend on the age of your vehicle.

Longer Shackles

Your 4x4 can also be lifted by using longer shackles. The shackles will provide 50% lift so a two-inch shackle will give a one-inch lift. The downside of longer shackles is that they affect pinion and shackle angle.

Longer shackles should be used in a limited manner as a corrective measure. Polyurethane spring eye and shackle bushings should be used because they are more durable than factory rubber bushings when there is a great deal of flexing.

Coil Spring Kits

In 4x4's with coil springs, a coil spring lift can be used. This type of lift uses a spring spacer or a longer coil spring. The spacer lift is more appropriate for the desired lift of two to three inches. The factory-installed springs can be kept, and the shock absorbers may not need to be replaced, so the spacer lift is relatively inexpensive.

Longer coil springs may improve the load capacity of the 4x4 but are more expensive and harder to install. The downside of coil spring lifts is that the angles of the radius arm and track bars are changed, and axle location may also be changed with both axles moving toward the centre of the truck, which can shift the centre of gravity!

Here are just some of the 4x4 lift kit suspension brands at AutoCraze;

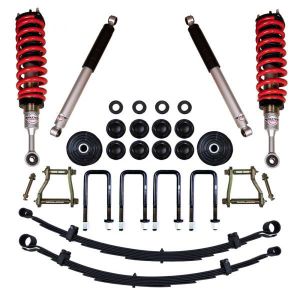

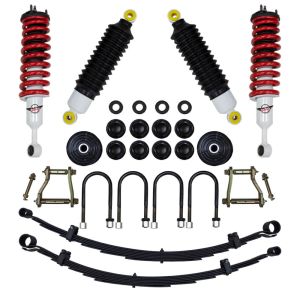

AutoCraze 4×4 Suspension Kits

AutoCraze has developed their own 4wd suspension kits! Collaborating with top suspension experts, we’ve taken the best components from various manufacturers and produced the ultimate Australian lift kit. Using technologies from the top brands including Tough Dog, Kings Springs and Super Pro, you’re receiving years of proven research and development.

The AutoCraze 4wd suspension lift kits are engineered for a comfortable ride for on-road use and tough performance off-road. Made to strike the perfect balance for both Aussie highways and trails.

Bilstein 4×4 Suspension

Bilstein 4×4 suspension has been tried and tested on tracks across Fraser Island to the Baja Racing tournaments. Bilstein 4×4 suspension is synonymous with uncompromising performance and leading technology.

For over 50 years, Bilstein 4×4 suspension has been destroying the competition, participating in the World Rally and Formula One.

Bringing forth new innovations such as the world’s first monotube gas pressure shock absorbers and applying them to standard production vehicles.

Across the world, Bilstein is known for their premium quality and reliability and recommended by professional race teams and experts. If you’re looking for quality 4×4 suspension that won’t let you down on a trail, Bilstein is a top contender.

Dobinsons Spring & Suspension

Established in 1953, Dobinsons Spring & Suspension have been doing lift kits for generations. Owned right here in Australia, you know you’re going to get Australian quality and reliability. Manufactured in Central Queensland, all Dobinson products were engineered with toughness in mind and complies with ISO9001:2008 international quality standards.

Their range of leaf springs is manufactured from high-quality spring steel with a correct grade that will give the longest life for your vehicle. Each spring is meticulously constructed for specific vehicles making it highly customised.

FAQ - 4X4 LIFT KIT SUSPENSION

What’s the best suspension lift?

Picking the best suspension lift kit is completely subjective. The best suspension lift kit could mean the biggest named brand or value for money. AutoCraze only stocks the best 4×4 suspension lift kit brands in the market for your vehicle.

Ideally, you would want to choose a 4×4 suspension lift kit that is closely aligned with your goals. That could be for performance, load bearing or just for a more comfortable ride.

How much is a 4×4 suspension lift kit?

A 4×4 suspension lift kit can typically cost you anywhere between $995 -$2000 with an installation.

What is the difference between a body lift and a 4×4 suspension lift?

The difference between a body lift is that a body lift uses both blocks and spacers to lift the body of your vehicle higher without actually altering the suspension of the vehicle.

Tough Dog 4WD Suspension

Tough Dog has been making a name for itself across the world, distributing across 28 countries. Sponsoring major off-roading organisations and winning awards for their shocks, you know how reliable their products are.

From their range of 35mm Nitro Gas shock absorbers to their 53mm Ralph 4WD shock, Tough Dog lift kits have options designed for any situation.

Designed specifically for harsh Australia conditions, whether you’re carrying heavy loads as a tradie or touring the roughest roads, Tough Dog is a fantastic choice for your 4WD.

FOX 4WD SUSPENSION

When your shocks and suspension was a part of the car that won BAJA 1000 4 years running, you know you’re onto a winner. Fox 4×4 suspension developed shocks and suspension for a whole range of vehicles from ATV, Motorcycles, Bikes, Snowmobile, Track cars and off-road trucks.

Since 1974, Fox lift kits were designed for off-road enthusiasts from to the United States down to Australia. Participating in over 125 races per year, this shows the dedication and research that goes into every kit.

WHY GET A 4X4 SUSPENSION LIFT

Buying a lift kit is more than just about the looks. There are huge functional benefits in getting a 4×4 suspension. The standard 4×4 suspension was never designed to handle the tough conditions we want it to. From pulling heavy loads or caravans to taking heavy hits from hill climbing and mud trawling. Aftermarket 4×4 suspension takes this into account to ensure that all vehicles are prepared for the Australian outback. Here are 3 reasons why you want to lift your 4WD.

More clearance equals a better off-roading experience. Your lifting all your critical components under your vehicle away from the ground. This means when you do go off-road you’re adding inches on your 4×4 moving the frame away from any unexpected debris, rocks and cross any flooded banks.

With extra clearance and space, you can now fit bigger wheels and tyres. With bigger wheels and aggressive tyres, you’ll also get a longer life. When you have bigger tyres, it also means added traction so you’re never left in the dark in snowy, muddy or sandy terrain.

Add height, beefier wheels and tyres and you’ve got yourself one badass truck.

BENEFITS OF 4X4 SUSPENSION

Getting a 4×4 suspension done at AutoCraze can give you a wide variety of benefits, these include:

Increased Towing & Load Carrying: Getting a 4×4 suspension can help increase your load bearing potential. Helping your 4wd cope with much heavier loads and pressures. Giving it a more added stability on the rear of your vehicle with heavy duty coil springs or leaf springs.

Off-Roading: If you’re planning to go off-roading with your 4wd then a 4×4 suspension is a must. Giving you a sense of relief that you’ll never get stuck in a sticky or bad situation when going off-road. Most performance-based suspensions is designed to help cope with aggressive driving over uneven terrains. Allowing you to get over those bumpy and sticky situations without too much trouble.

Enhanced look and aesthetic: If you’re just looking to enhance the look of your pride and joy then we have something for you. AutoCraze have many 4×4 suspension brands available that offer an entry-level performance upgrade on your vehicle without the rougher and high cost of installing a high-end performance 4×4 suspension.

COMPONENTS OF 4X4 SUSPENSION

There are many components within a 4×4 suspension that makes it work. These components within a 4×4 suspension can alter the way your 4wd drives by either making it more comfortable or increase your load bearing potential to help push heavier loads and even help perform on off-road terrains.

Generally, all 4×4 suspension comprises of:

►Shocks: The shocks within a 4×4 suspension is one of the most important parts. It ensures that your vehicle is kept relatively comfortable and smooth. Many vehicles replace their shock absorbers with a higher pressure, high-temperature replacement for those who plan to pull heavy loads or go off-roading with their 4WD.

► Springs: The springs within your 4×4 suspension work hand to hand with your shocks. Helping absorb energy that’s generated when driven over humps and bumps when going off-road. Typically, when you raise your vehicle, raised springs are required to ensure your safety. However, if you’re getting a load-based suspension done, then a much firmer and stronger heavy duty coil springs or leaf springs can be installed to provide additional support when towing heavy loads.

► Bushes: In almost all 4×4 suspension kits, you’ll tend to find that there are a number of bushes that help separate the moving parts of your vehicle. To help reduce scrapping and scrubbing between them and help absorb shocks that would otherwise be directed to the more delicate parts of the vehicle.

► Shackles & Bolts: The shackles & bolts within a 4×4 suspension kit comes in a vast variety of sizes to help tie together your suspension set up. These, shackles & bolts, including your U-bolts, are usually replaced when it’s necessary as part of the suspension to give it extra reinforcement and greater stability.
